[o3u] - cam

light in numbers

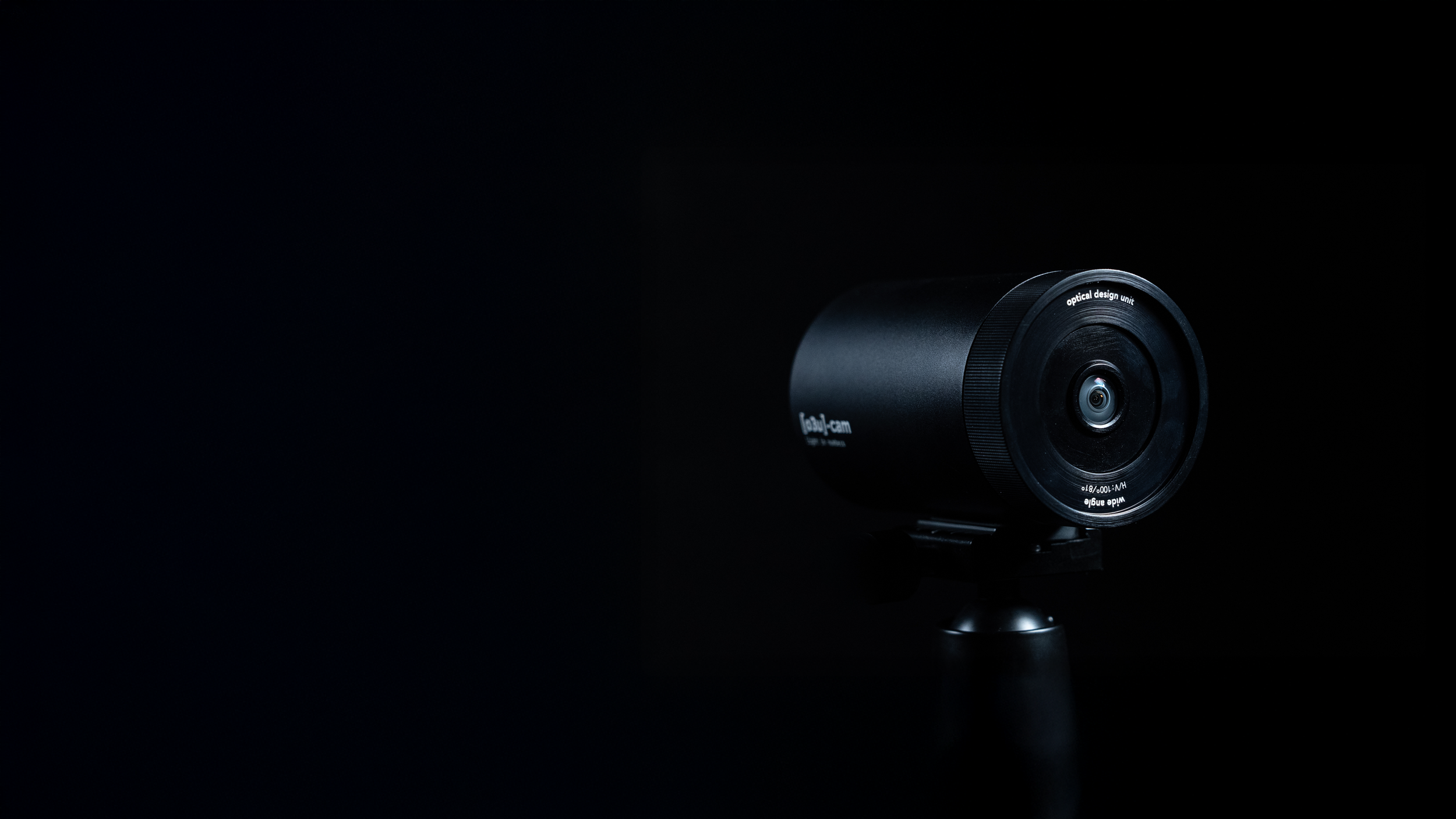

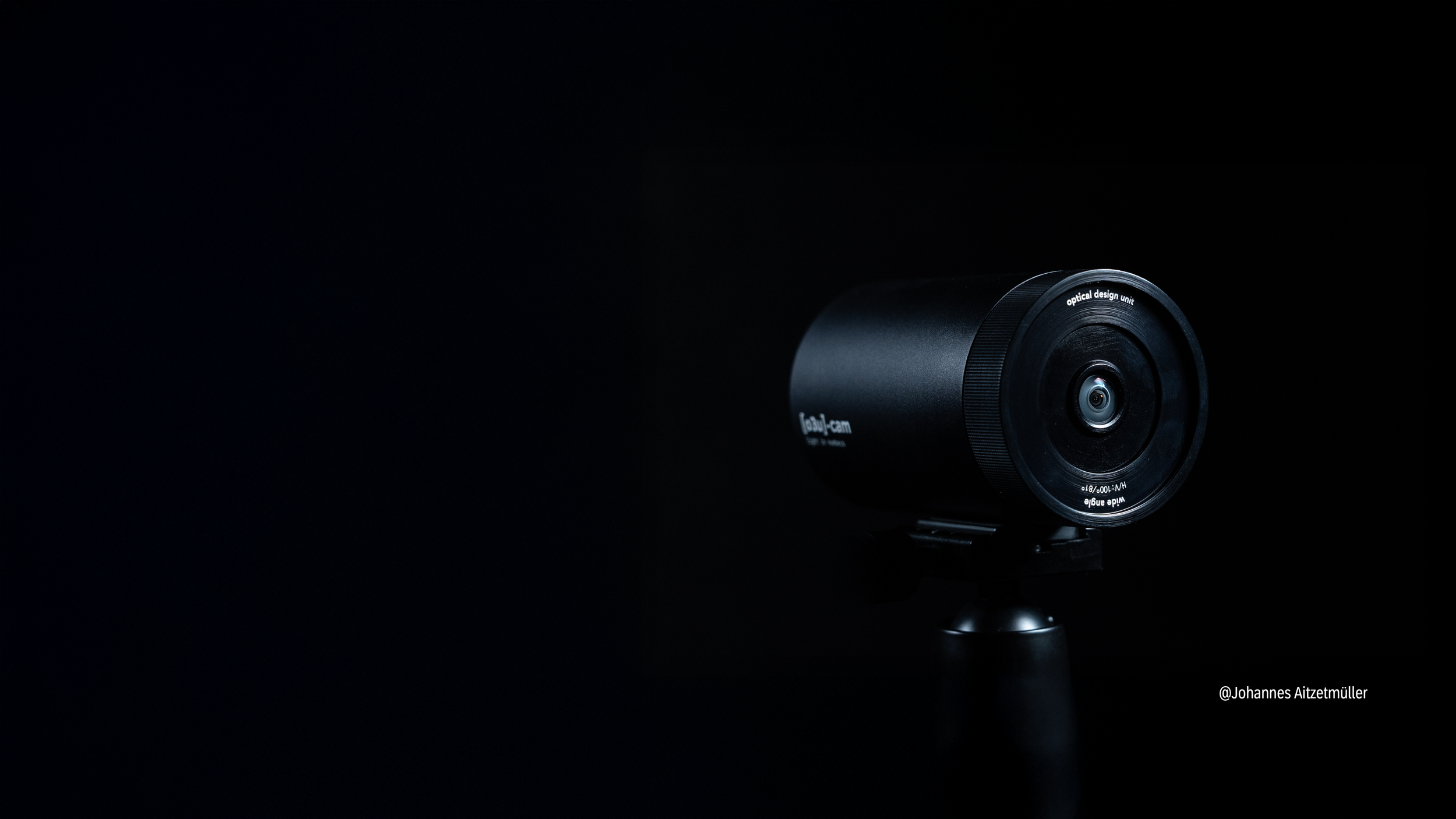

[o3u]-cam is a camera-based device for measuring photometric properties of light sources.

  • Laboratory set-up, luminaire analysis, optical development, optimal light distribution, and more.

  • With and without automation, ensuring precision and efficiency at every stage.

  • Standardization and verification of equipment for medical applications.

  • Lighting environments, luminance camera simulations, mock-up analysis, and architectural lighting studies.

  • On-site analysis, product benchmarking, and real-world testing.

  • Key feature presentations, positioning strategies, and specialized training.

ICONS

  1. aplications (laboratory set-up, lighting lab, luminare analisys, optical development, optimal light distribution…)

  2. production and quality control with and without automatisation

  3. medical test and calibration stands

  4. lighting design, lighting environment, luminance camera, mock-up analisys, architectural lighting analisys

  5. mobile, flexible, in situ, on site lighting analisys, product banch markt

  6. visualisation, education, positioning, key features presentations

[o3u]-cam is equipped with its own light caracteristic software, which allows the device to be controlled directly from the application, as well as processing and displaying the measurements taken.

[o3u]-cam analyzes data such as light intensity distribution and polar plot, among others.

this data can be exported easily in eulumdat format, widely recognized in the optical field, or as a .docx (word) file.

onboard preprocesing inteligence

interaction with calibrated standard devices for photometric measurements

connection to the network via LAN or Wi-Fi

powered via USB-C

neutral density filter which avoids saturation at very high light intensities.

wide angle lens option that allows measurements of large areas from closer points.

portrait lens option that allows measurements of large areas from further points.

technical specifications

physical dimensions

dimensions (l x d)

weight

photometric specifications

wide angle lens area (d / h / v)

portrait lens area (d / h / v)

electric

connection

power supply input

148 x 80mm

1.24kg

184.6º / 140º / 102.6º

72.64º / 57.12º / 42.44º

USB

220V
